उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | पीएच सेंसर | माप -सीमा: | 0 ~ 14 पीएच |
|---|---|---|---|
| शून्य (E0) पीएच: | ± 0.25ph | ढलान%: | ＞ 95% |
| कार्य का दबाव: | 0-6बार | काम कार्य: | 0~135℃ |
| तापमान इकाई: | PT100, PT1000, NTC10K अनुकूलित | स्थापना आयाम: | पीजी13.5 |
| एक प्रकार का सीड़ा: | अभिन्न या विभाजन | तार: | मानक 5 मीटर |
| आवेदन: | चिपचिपा घोल या डिसल्फराइजेशन | ||
| प्रमुखता देना: | high temperature resistant pH sensor,harsh environment pH probe,high pollution ORP sensor |
||

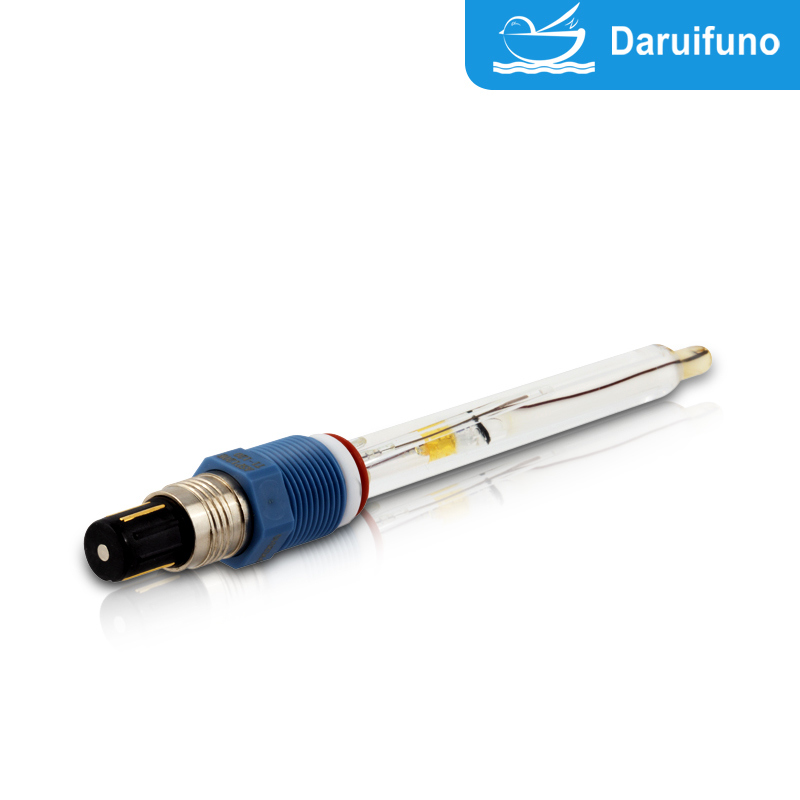

Daruifuno manufactures the rugged, high-performance ASP126E industrial pH electrode for harsh environments.
Designed for harsh environments, this sensor provides a reliable pH measurement solution with a measurement range of 0 to 14 pH. Its robust construction and advanced reference system ensure stable and accurate performance even in highly contaminated and high-temperature applications.
Superior measurement technology: The core of this pH electrode is a low-impedance cylindrical glass membrane indicator electrode, designed for fast, accurate readings with minimal drift.
It is paired with a highly stable reference system utilizing an Ag/AgCl reference electrode and a proprietary non-porous salt bridge with KCl gel.
This advanced design is crucial, as its non-porous structure is particularly resistant to poisoning and contamination, making it ideal for harsh, highly contaminated, and high-temperature media.
Built for extreme conditions: This electrode stands out for its exceptional tolerance to operating stresses.
It is suitable for a variety of operating conditions and offers flexible operating pressure and temperature specifications: Low-medium ambient: Continuous operation from 0 to 80°C with a maximum operating pressure of 0 to 6 bar.
High-temperature: Continuous operation from 80 to 100°C for up to 60 minutes.
Custom configurations are also available for more extreme applications: Custom low-medium ambient: Continuous operation from 0 to 100°C.
Custom high-temperature: Continuous operation from 100 to 135°C for less than 60 minutes.
This high-temperature specification is certified for reliable operation for over 40 cycles (tested in clear water).
Optimized for moderate flow rates, this electrode operates effectively in sample flow rates from 0.001 m/s to 0.5 m/s.
Accuracy and Integration: Key measurement specifications guarantee accuracy and performance: zero point (E0) tolerance of 0.25 pH and slope greater than 95%. This sensor seamlessly integrates into your existing system.
It features a standard 12mm diameter and 120mm length (custom lengths available), along with an industry-standard PG13.5 mounting thread.For temperature compensation, custom options include PT100, PT1000, or NTC10K.
Finally, installation is simplified with a choice of integrated or detachable cable outlet options.
Choose this rugged pH electrode for reliable, accurate, and durable performance, minimizing downtime and maximizing process efficiency in the harshest industrial environments.
| Model | ASP120E | ASP121E | ASP122E | ASP123E | ASP124E |
|---|---|---|---|---|---|
| Measuring Object | PH | ||||
| Measuring Range | 0~14pH | ||||
| Indicator Electrode | low impedance cylindrical glass membrane | ||||
| Reference System | Ag/AgCl reference electrode, double salt bridge, KCl gel | ||||
| Electrode Material | Glass+Dot-shaped ceramic hole | Glass+Dot-shaped ceramic hole | Glass+Dot-shaped ceramic hole | Glass+Porous tetrafluoro ring | Glass+ceramic sand core |
| Working Pressure | Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar | ||||
| Working Temp. | Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.) | ||||
| Sample Flow Rate | 0.5 m/s ≥ flow velocity ≥ 0.001 m/s | ||||
| Zero (E0) | ±0.25pH | ||||
| SLOP% | ＞95% | ||||
| Temperature Unit | PT100, PT1000, NTC10K customized | ||||
| Dimension | Standard: diameter 12mm/Length 120mm (customized) | ||||
| Installation Thread | PG13.5 | ||||
| Tail Lead | Integral or split | ||||
| Application | Strong acid and alkali | Normal temp. pure water >5μS/cm | Harsh industrial process* | Normal temp. desulfurization or viscous slurry | Hydrofluoric acid with concentration ≤4000ppm |
| Model | ASP125E | ASP126E | ASP127E | ASR120E | ASP128E |
|---|---|---|---|---|---|
| Measuring Object | PH | PH | PH | ORP | PH |
| Measuring Range | 0~14pH | 0~14pH | 0~14pH | ±2000mV | 0~14pH |
| Indicator Electrode | low impedance cylindrical glass membrane | low impedance cylindrical glass membrane | low impedance cylindrical glass membrane | Platinum | glass membrane |
| Reference System | Ag/AgCl reference electrode, double salt bridge, KCl gel | ||||
| Electrode Material | Glass+ceramic sand core | ||||
| Working Pressure | Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar | max. 0~6bar | |||
| Working Temp. |
Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.) |
-15~80℃, continuous work | |||
| Sample Flow Rate | 0.5 m/s ≥ flow velocity ≥ 0.001 m/s | ||||
| Zero (E0) | ±0.25pH | ||||
| SLOP% | ＞95% | ||||
| Temperature Unit | PT100, PT1000, NTC10K customized | ||||
| Dimension | Standard: diameter 12mm/Length 120mm (customized) | ||||
| Installation Thread | PG13.5 | ||||
| Tail Lead | Integral or split | ||||
| Application | Strong acid and alkali | Harsh conditions &high pollution | Fermentation process | High temp. Industrial process | Low temp. |
