उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | टर्बिडिटी सेंसर | माप प्रौद्योगिकी: | इन्फ्रारेड डबल बीम बिखरी हुई रोशनी |
|---|---|---|---|
| माप -सीमा: | 0.01 ~ 4000NTU | संकल्प: | ± 2% |
| शुद्धता: | मापा मूल्य या 0.3NTU के 5.0% से बेहतर, जो भी अधिक हो | संचार: | RS485 मोडबस-आरटीयू |
| प्रतिक्रिया समय: | T90 ＜ 60s | काम का दबाव: | ≤4bar |
| संचालन तापमान: | 0 ~ 45 ℃ | शेल सामग्री: | मानक एसएस 316L |
| संरक्षण ग्रेड: | IP68 | केबल: | 10 मीटर |
| प्रमुखता देना: | Infrared turbidity sensor with self-cleaning,Turbidity analyzer 0.01-4000NTU range,Self-cleaning turbidity sensor with brush |
||

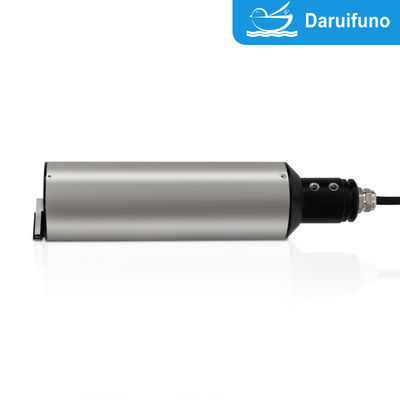

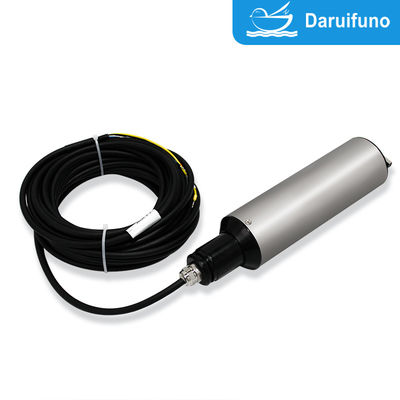

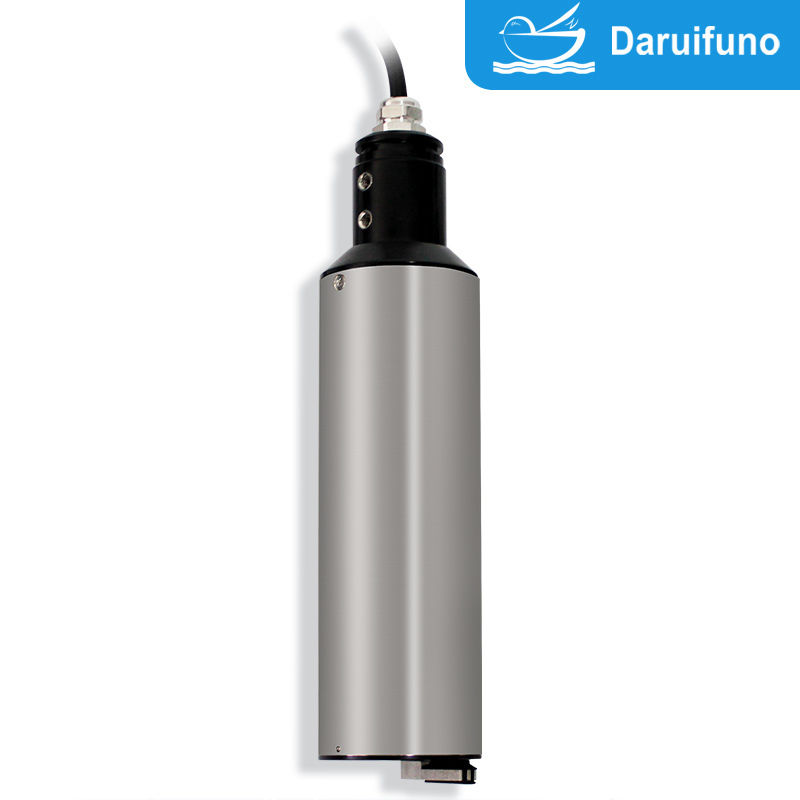

| Sensor Information | Infrared Turbidity Sensor |
|---|---|
| Model | OPTU311 (with brush) |
| Measuring Technology | Infrared scattering principle |
| Measuring Range | 0.01~4000NTU |
| Resolution | 0.01NTU |
| Accuracy | ±2% of measured value or ±0.1NTU (whichever is greater) |
| Communication | RS485 MODBUS-RTU |
| Response Time | T90 < 60s |
| Calibration Method | Multi-point calibration; factor correction |
| Working Pressure | ≤4Bar |
| Sample Flow Rate | No dependency |

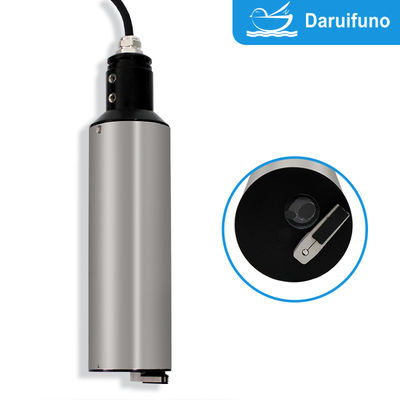

| Cleaning Method | Equipped with cleaning brush, automatic cleaning under water |
| Working Temperature | 0~45°C (no freezing) |
| Storage Temperature | 0~60°C (no freezing) |
| Main Material | SUS 316L stainless steel (Titanium customized option) |
| Dimension | Φ60mm*L265mm |
| Mounting | Horizontal installation (special accessories required) |
| Protection Grade | IP68 |
| Power Supply | 9~24 V DC |
| Power Consumption | 1.5W |
| Weight | 800g |
| Cable | Standard 10 meters |
